Punching hole perforated mesh

Get Latest Price

Payment Type:	T/T,L/C
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	10 Piece/Pieces
Transportation:	Ocean,Land,Express
Port:	Xingang, Tianjin

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: JINNUO

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

Product Description

Materials:low carbon steel plate,stainless steel plate,aluminium plate,Al-Mg alloy plate.

Weaving and characteristics: it is punched to meshes,winding-resisting,Ageing-resisting corrosinresisting,the top of meshes is smooth,it is strong and durable.

Usage:used in filter of automobiles internal-combustion engine,sieving of mine,medicine,grain,sound insulation of room,ventilate of grain depot,etc.

We provide our customers with perforated metal sheets following
We can provide the following materials for perforating:
Stainless Steel SUS 304 and 316, Galvanized Steel, Carbon Steel, Aluminum, and all types of metals.
Specification:
We can manufacture a wide rang of metal sheets with thickness verifying from 0.35mm to 3 mm and width maximum 1200mm. Length is the overall measurement of the long side of the sheet. Width is the overall measurement of the -short side of the sheet. The standard sheet size is 1000mm*2000mm. and 1000mm*2500mm. The coil width 1000mm is also available. We also can process the special product for your requirement.
The hole shape for perforated metal products:

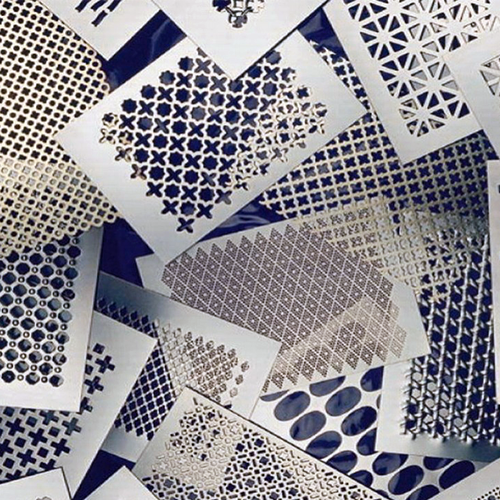

Round, square, long round, triangle, scale, diamond, oval, hexangular, slot etc Performated Meta Mesh1

Sheet Metal Aperture
In general it is advisable to use a hole size larger than the material thickness. The closer the hole size and material thickness come to a 1 to 1 ratio, the more difficult and expensive the process is. Dependent on the material type, smaller hole size to material ratios can be achieved. The minimum diameter we can fabricate is 0.8mm to 4 mm thickness . If you require a die that isn't already in our die bank, our experienced tool and die makers can quickly make exactly what you need at a reasonable cost.

Our Perforated Sheet is available in the following patterns:
Round, square, oblong, triangle, slot, hex, oval, diamond and a broad variety of special shaped holes. We have tooling available for many different hole patterns and shapes. It is more economical to choose one of the available patterns, although special hole sizes and patterns can be accommodated at additional cost.

Open area
Open area is the total area of the holes divided by the total area of the sheet and is expressed as a percent , Keep in mind that punching holes in a material add stresses that can result in distortion of the product. The higher the open area, the more material distortion takes place, especially when the perforated pattern is bordered by margins on all four sides. But these distortions can be removed by our special in house leveling process.

Margins
Margins are the blank area along the edges of the sheet. If you want the product with special margins, you should provide the width of each margin on all four sides (measured from the edge of the sheet to the edge of the first hole).Manufacturing considerations may affect margins. If the margins requested are not possible. We will replace it with the similar products as your consideration.

Tolerances
There are tolerances on thickness, pitch, openings, flatness, and shearing for perforated products. You should specify a specific tolerance ,so we can give you a precise product. If not, we will according to standard tolerance.
